LOA 7.00m (23'0")

LWL 6.61m (21'8")

Beam 2.47m (8'1")

Draft lift keel 0.5/1.7m (1'8"/5'7")
Draft fixed keel 1.7m (5'7")

Displ to DWL 1300kg (2865lb)

Displ light 875kg (1929lb)

Ballast 380kg (838lb)

Waterplane area 8.64sq.m (93sq.ft)

Immersion rate 88kg/cm (494lb/inch)

Wetted surface 12.08sq.m (130sq.ft)

Sail area (main + jib) 24.4sq.m (263sq.ft)

Sail Area/Wetted Surface 2.02

Sail Area/Displ 20.7

Displ/length 125

Prismatic coef .54

Block coef .40

Fineness coef .66

Righting Moment @ 30 deg 713kgm (5158ft.lb)

Righting Moment @ 60 deg 742kgm (5367ft.lb)

Righting Moment @ 90 deg 401kgm (2899ft.lb)

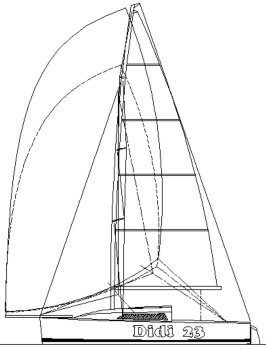

I 7.95m (26'1")

J 2.36m (7'9")

P 9.19m (30'2")

E 3.41m (11'2")

Mainsail (excl roach) 15.64sq.m (168sq.ft)

Jib 8.77 sq.m (94sq.ft)

Drifter 12.16sq.m (131sq.ft)

Powering 10hp outboard

Headroom 1.3m (4' 3")
