Dix 43 Pilot

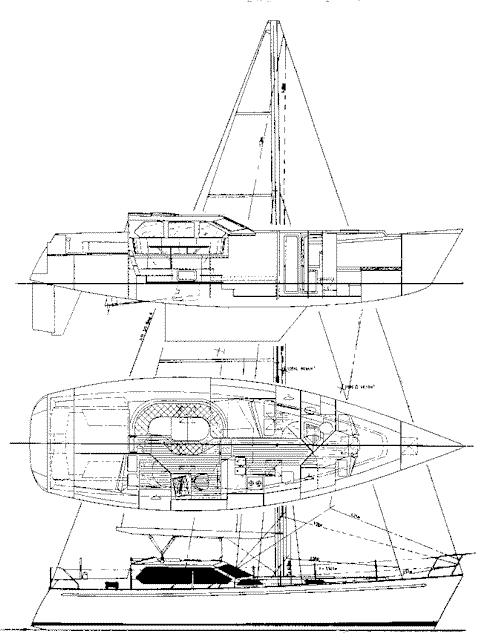

Dix 43 Pilothouse radius chine aluminum boat plans



Dix 43 Pilothouse radius chine steel boat plans



Dix 43 Pilothouse radius chine steel boat plans



Dix 43 Pilot radius chine boat plans



Karakteristikler

LOA - 13.35m (43'10")

LWL 11.87m (38'11")

Beam 4.10m (13'5")

Draft 1.45m or 1.80m (4'9" or 5'11")

Displacement 14300kg (31517lb)

Ballast 4000kg (8816lb)

Area Waterplane 28.65sq.m (308sq.ft)

Immersion Rate 293kg/cm (1640lb/inch)

Wetted Surface 46.77sq.m (503sq.ft)

Fineness Coef 0.67

Block Coef 0.41

Prismatic Coef 0.59

Displacement/Length 238

Sail Area (Main + Fore-triangle) 91.44sq.m (984sq.ft)

Sail Area/Wetted Surface 1.96

Sail Area/Displ 15.7

Righting Moment @ 30 deg 8756 kgm (63330ft.lb)

Righting Moment @ 60 deg 11918 kgm (86200ft.lb)

Righting Moment @ 90 deg 8888 kgm (64285ft.lb)

Powering 45hp inboard diesel
