Dix 61

Dix 61 sail plan

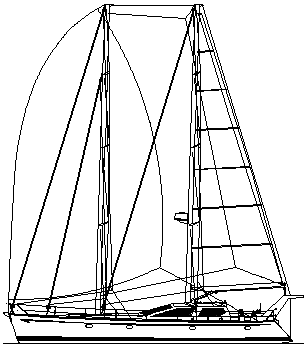

Dix 61 schooner rig

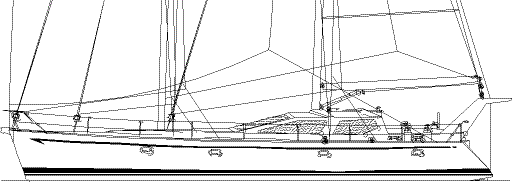

Dix 61 side view

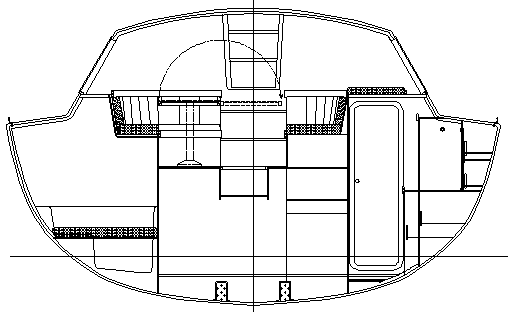

Dix 61 section

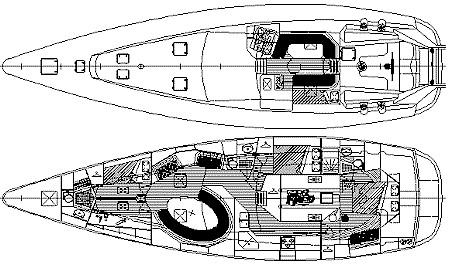

Dix 61 accommodation

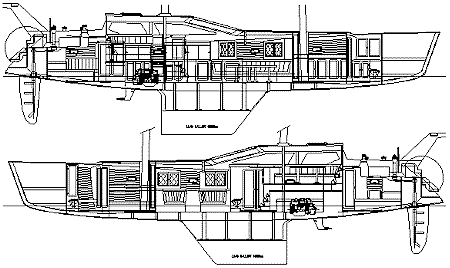

Dix 61 longitudinal sections



Karakteristikler

LOA 18,50m (60'8")

LWL 16,80m (55'1")

Beam 5,28m (17'4")

Draft 2,50m (8'2")

Displ DWL 22000kg (48488lb)

Ballast 9000kg (19836lb)

Block Coefficient .43

Prismatic coef .59

Fineness Coefficient .68

Waterplane Area 46.34sq.m (499sq.ft)

Immersion Rate 474kg.cm (2654lb/inch)

Wetted Surface 67.4sq.m (725sq.ft)

Schooner Rig
Mainsail 53.2sq.m (573sq.ft)
Jib 58.3sq.m (628sq.ft)
Staysail 26.3sq.m (283sq.ft)
Main staysail 58,1sq.m (625sq.ft)
Fisherman 120.1sq.m (1293sq.ft)

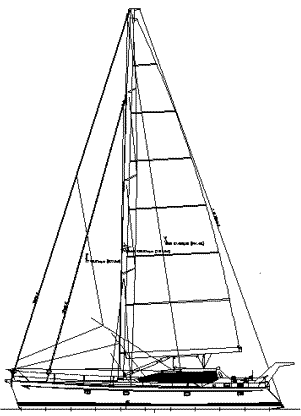

Upwind area 196sq.m (2109sq.ft) 		Cutter Rig
Mainsail 100.76sq.m (1084.6sq.ft)
Genoa 133.6sq.m (1438sq.ft)
Staysail 41.86sq.m (450.6sq.ft)
Upwind area 233.4sq.m (2523sq.ft)

Righting Moment Schooner
@ 30 degrees 21829kgm
(157884ftlb)
@ 60 degrees 30800kgm
(302045ftlb)
90 degrees 22001kgm
(159128ftlb)

Righting Moment Cutter
@ 30 degrees 23758kgm
(232986ftlb)
@ 60 degrees 31753kgm
(311391ftlb)
90 degrees 24453kgm
(239802ftlb)

Powering 100-200hp diesel

Water tankage 800 litres (220 US Gal)

Diesel tankage 1200 litres (330 US Gal)
