Dix 65

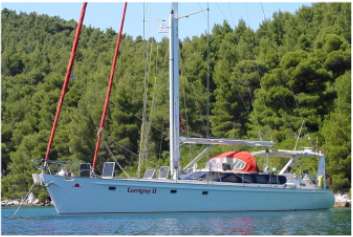

Dix 65 Lorrigray II

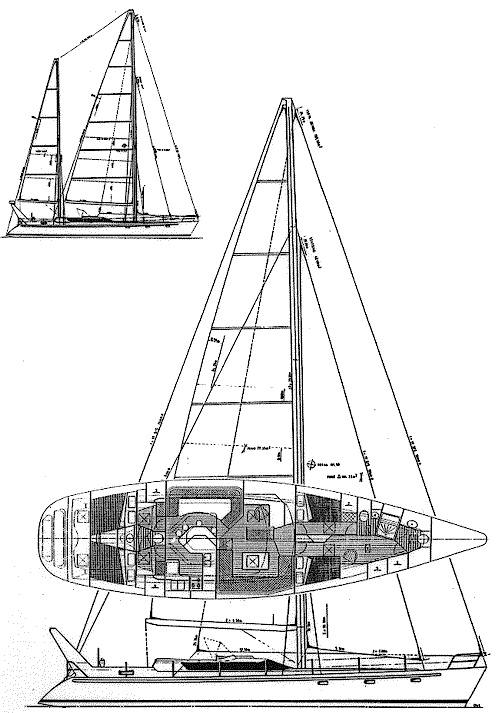

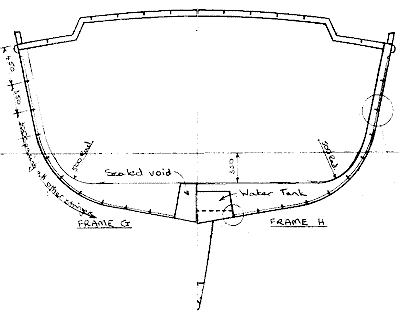

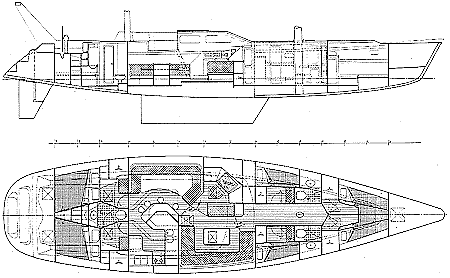

Dix 65 drawings



Dix 65 Radius chine steel sailboat



Dix 65 Radius chine steel sailboat



Karakteristikler

LOA 19.80m (65'0")

LWL 18.00m (59'1")

Beam 5.30m (17'5")

Draft 2.00m (6'7")

Displacement 34000kg (74936lb)

Ballast 9000kg (19836lb)

Area Waterplane 57.6sq.m (620sq.ft)

Immersion Rate 590kg/cm (3303lb/inch)

Wetted Surface 82.4sq.m (887sq.ft)

Fineness Coef 0.67

Block Coef 0.42

Prismatic Coef 0.57

Displacement/Length 159

Sail Area Upwind - Cutter 282.25sq.m (3038sq.ft)

Sail Area Upwind - Ketch 233.16sq.m (2510sq.ft)

Powering 2x75hp inboard diesels

Righting moment at 30deg (cutter) 27884kgm (201678kgm)

Righting moment at 60deg (cutter) 30875kgm (223311kgm)

Righting moment at 90deg (cutter) 19613kgm (141855kgm)
