Karakteristikler

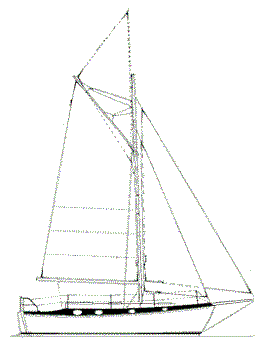

| LOA - Gaff Cutter 11,15m (36'7") | LOA - Marconi Cutter 10,05m (33'0") | LOD 9,13m (30'0") | LWL 7,67m (25'2") |
| Beam 3,30m (10'10") | Draft 1,50m 4'11") | Displacement 7250kg (15979lb) | Ballast [all lead] 2200kg (4849lb) |
| Area Waterplane 15,6sq.m (168sq.ft) | Immersion Rate 154kg/cm (862lb/inch) | Wetted Surface 26,5sq.m (58sq.ft) | Fineness Coef 0,68 |
| Block Coef 0,38 | Prismatic Coef 0,55 | Displacement/Length 448 | Powering 20hp inboard diesel |
| Sail Area [Main + Fore-triangle]] | Gaff - 50,2sq.m (540sq.ft) | Marconi - 51,1sq.m (550sq.ft) | |
| Righting Moment @ 30 deg | Gaff - 2772kgm (20049ft.lb) | Marconi - 3026kgm (21886ft.lb) | |
| Righting Moment @ 60 deg | Gaff - 4750kgm (34356ft.lb) | Marconi - 5190kgm (37538ft.lb) | |
| Righting Moment @ 90 deg | Gaff - 4527kgm (32743ft.lb) | Marconi - 5035kgm (36417ft.lb) | |
| Sail area/displacement | Gaff - 13.5 | Marconi - 13.8 | |
| Sail area/wetted surface | Gaff - 1.89 | Marconi - 1.93 |
